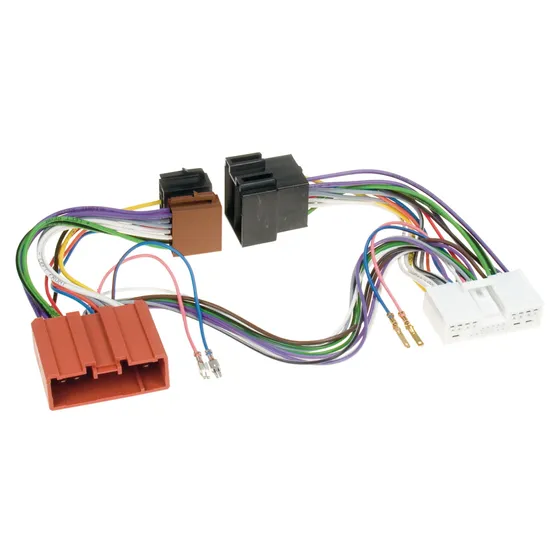

ACV T-Johtosarja Mazda 2001->

Note:

connector: 24 Pin (m/f) Mazda

for vehicles with OEM amplified systems or speaker impedance monitoring a T-Harness only works with limitations or not at all

pink: speed signal
blue: +12V Amp remote

wires must be connected through

Vehicle application:

• Mazda 2 (DY) 04/2003 - 10/2007
• Mazda 2 (DE) 10/2007 - 05/2015
• Mazda 3 (BK) 01/2004 - 03/2009
• Mazda 3 (BL) 05/2009 -  09/2013
• Mazda 3 (BM) 10/2013 - 01/2017
• Mazda 3 (BM) 02/2017 - 03-2019
• Mazda 323 (BJ) 10//2000 - 09/2003
• Mazda 5 (CR) 06/2005 - 10/2010
• Mazda 5 (CW) 10/2010 - 08/2015
• Mazda 6 (GG/GY) 06/2002 - 02/2008
• Mazda 6 (GH) 02/2008 - 04/2010
• Mazda 6 hatchback (GH) 02/2008 - 04/2010
• Mazda 6 sedan (GH) 04/2008 - 04/2010
• Mazda 6 (GH) 05/2010 - 02/2013
• Mazda 6 (GJ) 02/2013 - 02/2015
• Mazda 626 (GF/GW) 11/1999 - 07/2002
• Mazda B-Serie II Pickup 07/1999 - 11/2006
• Mazda BT-50 (BT-50) 01/2007 - 10/2008
• Mazda BT-50 (BT-50) 10/2008 - 07/2012
• Mazda CX-5 (GH) 04/2012 - 02/2015
• Mazda CX-7 (ER) 10/2007 - 09/2009
• Mazda CX-7 (ER) 10/2009 - 09/2013
• Mazda CX-9 (TB1) 01/2007 - 07/2016
• Mazda Demio (DW) 05/2000 - 08/2003
• Mazda MPV (LW) 12/2000 - 06/2002
• Mazda MPV (LW)  05/2002 - 10/2003
• Mazda MPV (LW) 04/2003 - 11/2005
• Mazda MX-5 (NB) 04/1998 - 08/2005
• Mazda MX-5 (NC) 10/2005 - 02/2009
• Mazda MX-5 (NC) 02/2009 - 07/2015
• Mazda Premacy (CP) 11/2001 - 05/2005
• Mazda Protégé 2001 - 2005
• Mazda RX-8 (SE) 04/2003 - 07/2009
• Mazda RX-8 (SE) 10/2009 - 10/2010
• Mazda Tribute (EP) 03/2004 - 11/2005
• Mazda Xedos 9 (TA) 11/2000 - 01/2003
