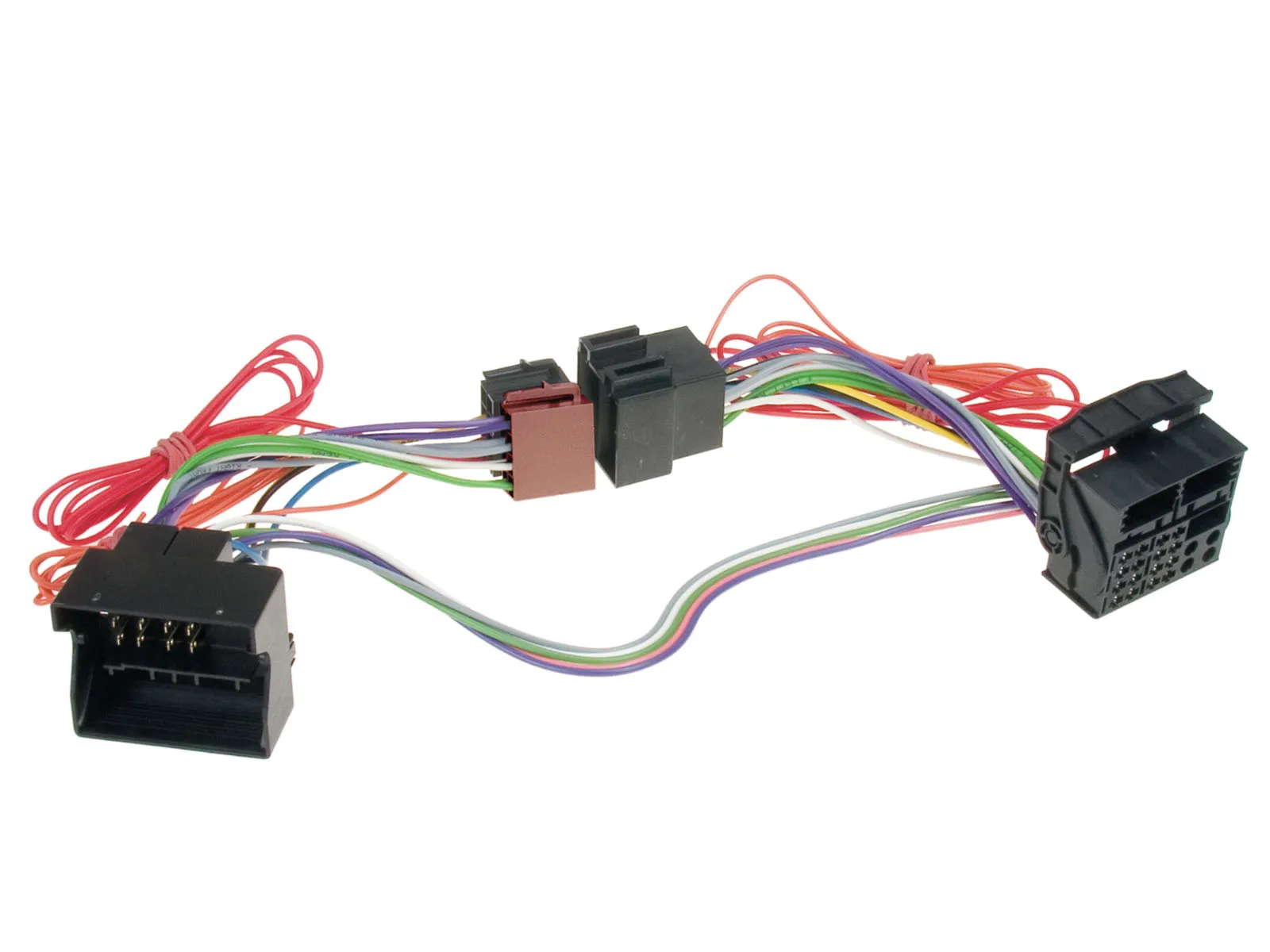

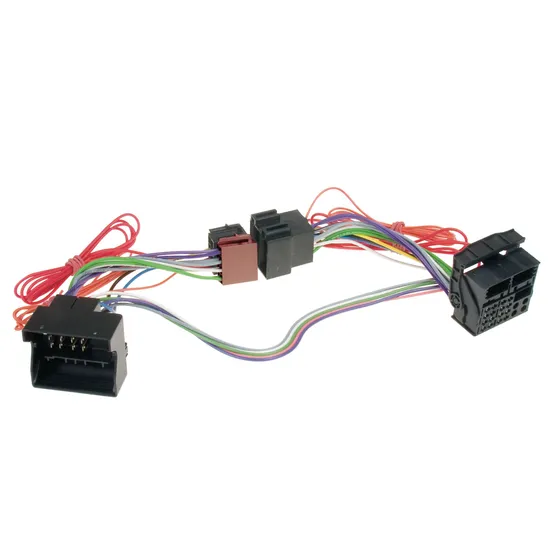

ACV T-Johtosarja Audio 20 2004 ->

Note:

connector: 40 Pin Quadlock (m/f) Mercedes

for vehicles with OEM amplified systems or speaker impedance monitoring T-Harness only works with limitations or not at all

vehicles Mercedes with Audio 20 2-DIN OEM HU
vehicles Mercedes with Audio 50 APS Comand NTG2.5 OEM Sat Nav
vehicles Mercedes Sprinter (W907/W910) with open dash / with Browse 1-DIN OEM HU
vehicles Mercedes Citan 420 (W420) with open dash / with Browse 1-DIN OEM HU

vehicles Mercedes/VW without open dash
vehicles Mercedes/VW without 1-DIN OEM HU

red: +12V ignition clamp 15 connect to fusebox fused
orange: + 12V switched dimmer clamp 58 fused

Vehicle application:

Mercedes

• Mercedes A-class (C169/W169) 10/2004 - 04/2008
• Mercedes A-class (C169/W169) 06/2008 - 06/2012
• Mercedes B-class (T245) 07/2005 - 04/2008
• Mercedes B-class (T245) 04/2008 - 09/2011
• Mercedes C-class (CL203/S203/W203) 02/2004 - 09/2007
• Mercedes C-class (C204/S204/W204) 08/2007 - 01/2011
• Mercedes C-class (C204/S204/W204) 03/2011 - 10/2015
• Mercedes Citan 420 (W420) 10/2021 - 2023
• Mercedes CLC-class (CL203) 06/2008 - 02/2011
• Mercedes CLK-class (W209) 04/2005 - 01/2010
• Mercedes CLS-class (C219) 04/2008 - 09//2010
• Mercedes E-class (S211/W211) 03/2008 - 01/2009
• Mercedes E-class (A212/C212/S212/W204) 02/2009 - 03/2013
• Mercedes G-class (W463) 04/2007 - 06/2008
• Mercedes G-class (W164) 09/2008 - 06/2012
• Mercedes GL-class (X164) 09/2006 - 05/2009
• Mercedes GL-class (X164) 05/2009 - 07/2012
• Mercedes M-class (W164) 07/2005 - 04/2008
• Mercedes M-class (W164) 10/2008 - 07/2011
• Mercedes ML (W164) 07/2005 - 04/2008
• Mercedes ML (W164) 10/2008 - 07/2011
• Mercedes R-class (W251) 09/2005 - 05/2007
• Mercedes R-class (W251) 05/2007 - 05/2010
• Mercedes SLK-class (R171) 04/2008 -03/2011
• Mercedes Sprinter (W906) 04/2006 - 08/2013
• Mercedes Sprinter (W906) 08/2013 - 05/2018
• Mercedes Sprinter (W907/W910) 06/2018 - 12/2020
• Mercedes Sprinter (W907/W910) 11/2019 - 2023
• Mercedes Vito/Viano (W639) 04/2006 - 08/2010
• Mercedes Vito/Viano (W639) 09/2010 - 03/2014
• Mercedes Vito (V447) 10/2014 - 02/2019
• Mercedes Vito (V447) 05/2019 - 2023

Smart

• Smart For Four (W454) 01/2004 - 04/2007*


VW

• VW Crafter I (2EC/2EK/2F) 03/2006 - 07/2011
• VW Crafter I (2EC/2EK/2F) 07/2011 - 11/2016

*vehicles with Comand OEM Sat Nav 40 Pin Quadlock

Vehicles:

• Mercedes CLS-Klasse (W219) 10/2004 - 06/2008
• Mercedes E-Klasse (S211/W211) 03/2002 - 02/2008
• Mercedes SL-Klasse (R230) 03/2006 - 02/2008
• Mercedes SL-Klasse (R230) 04/2008 - 12/2011
• Mercedes SLK-Klasse (R171) 03/2004 - 03/2008

vehicles without Audio 50 APS Comand NTG2.5 OEM Sat Nav:
T-Harness Mercedes CLS/E-Class/SL/SLK 40Pin MB2: 57-1190

Optional:

T-Harness adapter harness Quadlock MQS-housing (m/f) > item: 1424-05
