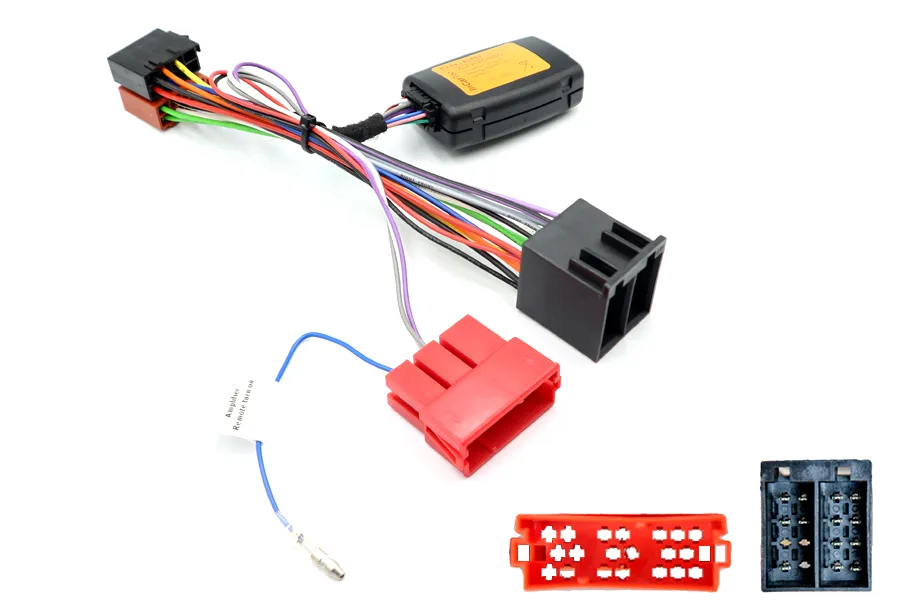

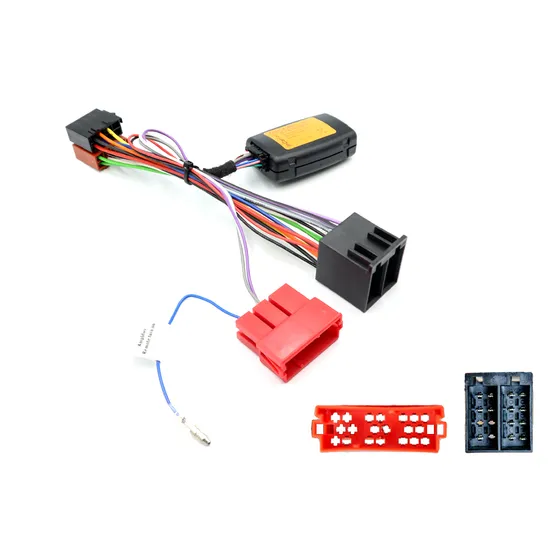

InCarTec STALK Alfa Romeo 147 ja1 56

Alfa Romeo - 147 (Type 937) (2000 - 2010)
Alfa Romeo - 147 GTA (2002 - 2005)
Alfa Romeo - 156 (Type 932)' (1997 - 2005)
Alfa Romeo - 156 GTA* (2002 - 2005)
Alfa Romeo - GT (Type 937) (2004 - 2010)

This interface is designed for vehicles that have permanent and ignition power feeds in the ISO connector in the dashboard.
Some cars only have a permanent power supply and use the CANbus signal to turn on the radio, for these cars a separate ignition power will need to be supplied or use our 29-655-CAN interface with a built in CAN ignition interface.

Fits the following Alfa Romeo vehicles:

147 (2000 - 2007) Pre-CANBUS vehicles only, including GTA

156 Facelift (2000 - 2007) Facelift cars and cars with original OEM navigation, including GTA

GT (2004 - 2008) Pre-CANBUS vehicles only

There are small amount of cars pre-2007 that have CANBUS ignition. Before ordering please remove the original radio as the vast majority of original radios have a useful wiring diagram on the chassis. Remove the original radio and check, if illumination and switched power are showing on pin 2 and 3 of the diagram then it does not have CAN ignition and 29-655 is the correct interface for you:

If Illumination and switched power are missing from pin 2 and 3 of the diagram then the car uses CANBUS ignition and will need interface 29-655-CAN:

NOTE: on some cars, the steering wheel control wires are reversed, check and test for correct operation of the steering wheel controls before installing the new radio in the dashboard. If they are not as expected or reversed then the white and grey steering wheel control wires will need to have their positions swapped at the interface box.



PLEASE NOTE: If the car is fitted with a BOSE sound system, this part must be used in conjunction with 20-266 Alfa Romeo BOSE interface.

---

HUOM: Tarvitset tämän tuotteen kanssa aina soitinkohtaisen liidijohdon, jotka löydät alla olevasta taulukosta.

Soitin	Tuotenumero	Lyhyt kuvaus
Alpine	29-001	Lead-johto 29-sarjan rattiohjaimelle Alpine-soittimiin.
Clarion	29-003	Lead-johto 29-sarjan rattiohjaimelle Clarion-soittimiin.
Kenwood	29-005	Lead-johto 29-sarjan rattiohjaimelle Kenwood-soittimiin.
Pioneer	29-007	Lead-johto29-sarjan rattiohjaimelle Pioneer-soittimiin.
Sony	29-008	Lead-johto 29-sarjan rattiohjaimelle Sony-soittimiin.
Zenec	29-011	Lead-johto 29-sarjan rattiohjaimelle Zenec-soittimiin.
Multilead	29-025	Itsepinnitettävä lead-johto Alpine-, Kenwood-, Pioneer-, Sony- ja kiinalaisiin soittimiin, joissa on joko kaksi johtoa tai 3.5 mm liitin.
