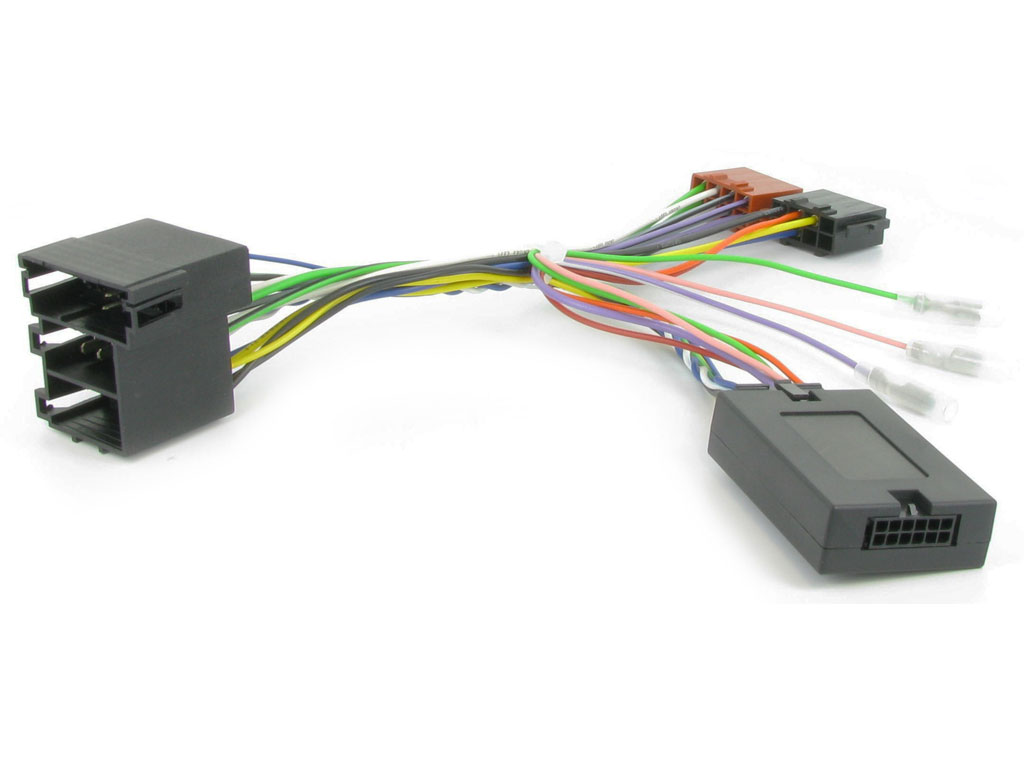

C2 STALK Citroen Jumper / Relay > 2008

Note:

analog
CAN bus

connection: ISO / Mini ISO

Vehicles with OEM device
Vehicles with 6 steering wheel remote control buttons / functions
Vehicles with CAN bus and analog LFB in the mini-ISO connector C2 pin 10/11/12

Vehicles with Blue&Me > Silverbox module must remain installed

Suitable for the following vehicles:

Citroen Jumper (250) 10/2006 - 11/2011
Citroen Relay (250) 2006 - 2011*

The following signals are made available:

Reimported vehicles or vehicles with different software may be functionally incompatible.

red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reverse signal
green: ground GND handbrake signal

Load capacity of total outputs: 100 mA max.

Current requirement greater than 100 mA:
1 relay coil resistance 75 Ohm min.
2 relay coil resistance 150 Ohm min.

Steering wheel remote control

*Vehicles with radio preparation
