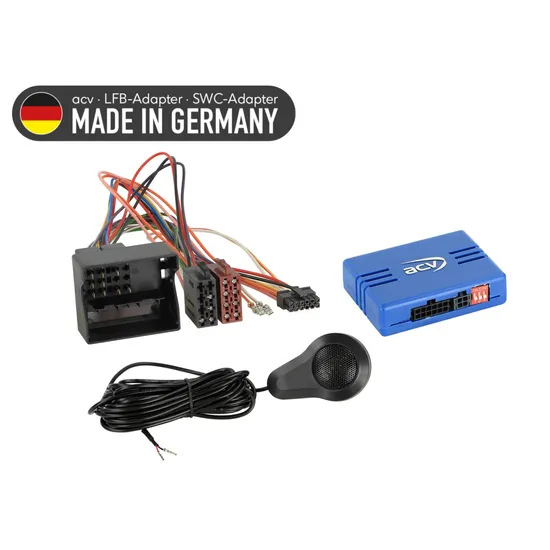

ACV STALK Expert / Jumpy / Proace PDC

Note:

CAN Bus

connector: 40 Pin Quadlock PSA > item: 42cx30

connection SWC speaker PDC 42cxpdc item image 4:
Pin 5: 42cxpdc red
Pin 11: 42cxpdc black

check dip switches for retrofit HU

vehicles with Blaupunkt / Continental / Siemens VDO RD4 /RD45 OEM HU with volume control knob
vehicles with Clarion MQ-RD6 OEM HU monochrome display and central rotary knob
vehicles with Continental RD45 OEM HU with rotary knob
vehicles with PDC

vehicles without Bosch OEM HU
vehicles without Magneti Marelli RT3 / RT6 / Harman Becker OEM Sat Nav with volume control knob
vehicles without JBL OEM amplified system

vehicle settings with SWC supported (look into the manual)

vehicles with ECO-mode:
+12V continuous current terminal 30 Battery fused

vehicles with PDC switch:
PDC sound playback must be activated

diagnostic LED:
blue flashing > CAN Bus search
blue constant > CAN Bus active
red > +12V ignition current active

Vehicle application:

Citroën
Citroën Berlingo (7) 06/2008 - 03/2012
Citroën Berlingo (7) 04/2012 - 05/2015
Citroën Berlingo (7) 06/2015 - 06/2018
Citroën C2 (J) 12/2004 - 12/2009
Citroën C3 (F) 10/2005 - 01/2010
Citroen C3 (S) 01/2010 - 03/2013
Citroen C3 (S) 04/2013 - 01/2017
Citroën C4 (L) 11/2004 - 08/2010
Citroën C5 (D) 10/2004 - 04/2008
Citroën C8 (E) 01/2008 - 07/2012
Citroën C8 (E) 07/2012 - 06/2014
Citroën DS3 (S) 03/2010 - 07/2014
Citroen Jumpy (V) 02/2007 - 05/2016
Citroen Jumpy (V) 09/2016 - 01/2024*
Citroen Nemo (A) 08/2008 - 12/2015
Citroen Spacetourer (V) 03/2016 - 03/2024*
Citroen Xsara Picasso (C) 03/2004 - 02/2010

Fiat
Fiat Scudo (ZAF 270) 02/2007 - 07/2016

Opel
Opel Vivaro C (V) 09/2019 - 01/2024*
Opel Zafira Life V (V) 02/2019 - 01/2024*

Peugeot
Peugeot 207 (WC) 06/2006 - 06/2009
Peugeot 207 (W) 06/2009 - 07/2015
Peugeot 208 (C) 04/2012 - 04/2015
Peugeot 307 (3/3 Break/3 SW/3 CC) 06/2005 - 03/2009
Peugeot 308 (4/4 GTI/4 SW/4 CC) 09/2007 - 07/2015
Peugeot 407 (6/6 SW/6 Coupé) 05/2004 - 07/2008
Peugeot 407 (6/6 SW/6 Coupé) 02/2006 - 03/2011
Peugeot 607 (9) 10/2004 - 04/2009
Peugeot 807 (E) 07/2002 - 02/2008
Peugeot 807 (E) 02/2008 - 06/2014
Peugeot 3008 (OU) 06/2009 - 10/2013
Peugeot 5008 (O) 10/2009 - 10/2013
Peugeot Bipper (A) 12/2007 - 12/2015
Peugeot Expert (X) 02/2007 - 08/2016
Peugeot Expert (X) 03/2016 - 2024
Peugeot Partner (7) 05/2008 - 03/2012
Peugeot RCZ (4J) 04/2010 - 09/2015
Peugeot Traveller 03/2016 -2024*

Toyota
Toyota Proace 03/2013 - 08/2016
Toyota Proace (V) 03/2016 - 04/2024*
Toyota Proace Verso (V) 03/2016 - 04/2024*

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

pink: +12V ignition clamp 15 1,5A max.
orange: +12V illumination clamp 58 0,1A max.
white: +12V reverse gear signal 1,5A max.
yellow/green yellow/red: speed pulse signal

SWC

vehicle settings supported

*vehicles with PDC and Clarion MQ-RD6 OEM HU monochrome display and central rotary knob
*vehicle settings not supported
