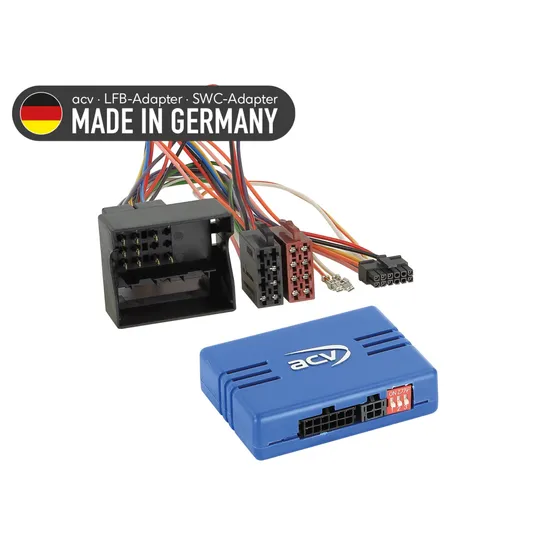

ACV STALK Expert / Jumpy / Proace

Note:

CAN Bus

connector: 40 Pin Quadlock PSA > item: 42cx30

check dip switches for retrofit HU

vehicles with Blaupunkt / Continental / Siemens VDO RD4 /RD 45 OEM HU with volume control knob
vehicles with Clarion MQ-RD6 OEM HU monochrome display and central rotary knob
vehicles with Continental RD45 OEM HU with rotary knob

vehicles without Bosch OEM HU
vehicles without Magneti Marelli RT3 / RT6 / Harman Becker OEM Sat Nav with volume control knob
vehicles without JBL OEM amplified system
vehicles with PDC

vehicle settings with SWC supported (look into the manual)

vehicles with ECO-mode:
+12V continuous current terminal 30 Battery fused

vehicles with PDC:
SWC CAN Bus speaker 42a/42cx PDC > item: 42cxpdc

vehicles with PDC switch:
PDC sound playback must be activated

diagnostic LED:
blue flashing > CAN Bus search
blue constant > CAN Bus active
red > +12V ignition current active

Vehicle application:

Citroën
Citroën Berlingo (7) 06/2008 - 03/2012
Citroën Berlingo (7) 04/2012 - 05/2015
Citroën Berlingo (7) 06/2015 - 06/2018
Citroën C2 (J) 12/2004 - 12/2009
Citroën C3 (F) 10/2005 - 01/2010
Citroen C3 (S) 01/2010 - 03/2013
Citroen C3 (S) 04/2013 - 01/2017
Citroën C4 (L) 11/2004 - 08/2010
Citroën C5 (D) 10/2004 - 04/2008
Citroën C8 (E) 01/2008 - 07/2012
Citroën C8 (E) 07/2012 - 06/2014
Citroën DS3 (S) 03/2010 - 07/2014
Citroen Jumpy (V) 02/2007 - 05/2016
Citroen Jumpy (V) 09/2016 - 01/2024*
Citroen Nemo (A) 08/2008 - 12/2015
Citroen Spacetourer (V) 03/2016 - 03/2024*
Citroen Xsara Picasso (C) 03/2004 - 02/2010

Fiat
Fiat Scudo (ZAF 270) 02/2007 - 07/2016

Opel
Opel Vivaro C (V) 09/2019 - 01/2024*
Opel Zafira Life V (V) 02/2019 - 01/2024*

Peugeot
Peugeot 207 (WC) 06/2006 - 06/2009
Peugeot 207 (W) 06/2009 - 07/2015
Peugeot 208 (C) 04/2012 - 04/2015
Peugeot 307 (3/3 Break/3 SW/3 CC) 06/2005 - 03/2009
Peugeot 308 (4/4 GTI/4 SW/4 CC) 09/2007 - 07/2015
Peugeot 407 (6/6 SW/6 Coupé) 05/2004 - 07/2008
Peugeot 407 (6/6 SW/6 Coupé) 02/2006 - 03/2011
Peugeot 607 (9) 10/2004 - 04/2009
Peugeot 807 (E) 07/2002 - 02/2008
Peugeot 807 (E) 02/2008 - 06/2014
Peugeot 3008 (OU) 06/2009 - 10/2013
Peugeot 5008 (O) 10/2009 - 10/2013
Peugeot Bipper (A) 12/2007 - 12/2015
Peugeot Expert (X) 02/2007 - 08/2016
Peugeot Expert (X) 03/2016 - 2023
Peugeot Partner (7) 05/2008 - 03/2012
Peugeot RCZ (4J) 04/2010 - 09/2015
Peugeot Traveller 03/2016 -2023*

Toyota
Toyota Proace 03/2013 - 08/2016
Toyota Proace (V) 03/2016 - 04/2024*
Toyota Proace Verso (V) 03/2016 - 04/2024*

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

pink: +12V ignition clamp 15 1,5A max.
orange: +12V illumination clamp 58 0,1A max.
white: +12V reverse gear signal 1,5A max.
yellow/green yellow/red: speed pulse signal

SWC

vehicle settings supported

*vehicles with Clarion MQ-RD6 OEM HU monochrome display and central rotary knob
*vehicle settings not supported
