RL-MFD3 VAG Kamera-adapteri RNS510 soittimell
Tuotekoodi: RL-MFD3
149,90 €

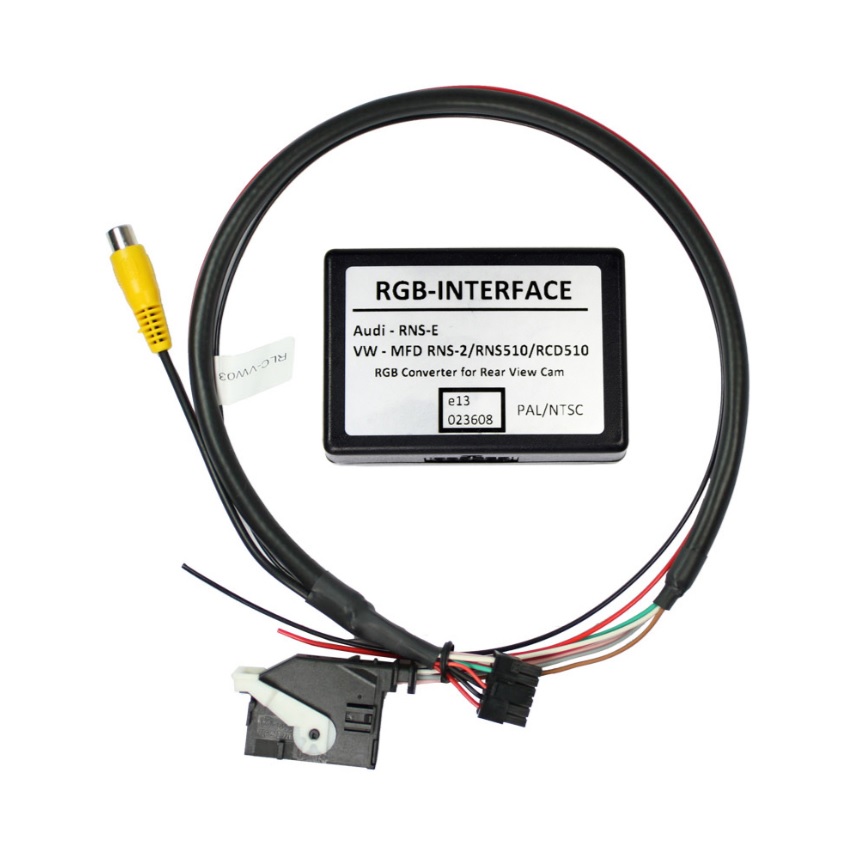

The r.LINK interface enables the connection of a reversing camera to the vehicle manufacturer's factory navigation system.
Product features
- Plug and play interface
- Integration into the factory infotainment system
- Rear view camera input (NTSC cameras only)
- Rear view camera image display up to approx. 5 km/h
- Automatic switching to rear view camera input when reverse gear is engaged (coding of head unit required)
Compatibility
- Seat Trinax (at least version B and software version 1100. Must be coded to rear view camera on the diagnostic computer)
- Skoda Amundsen, Skoda Bolero (Suitable for head unit with 26-pin connector on the rear. This must be coded to rear view camera on the diagnostic computer)
- Skoda Columbus (At least version B and software version 1100. Must be coded to rear view camera on the diagnostic computer)
- Volkswagen RNS315, VW RNS510 (For RNS510 at least version B and software version 1100. Must be coded to reversing camera on the diagnostic computer)
- Volkswagen RCD510, VW RNS310 (Suitable for head unit with 26-pin connector on the rear. This must be coded to rear view camera on the diagnostic computer)
- Only for vehicles WITHOUT factory rear view camera.
Restrictions
- Factory TV tuner: Must NOT be installed
- After-market rear view camera: Only NTSC cameras compatible
- Coding: The head unit must be coded to rear view camera via diagnostic computer. This is possible for RNS510/Columbus/Trinax and RCD510 with our optionally available OBD encoder OBD-VW-R-
