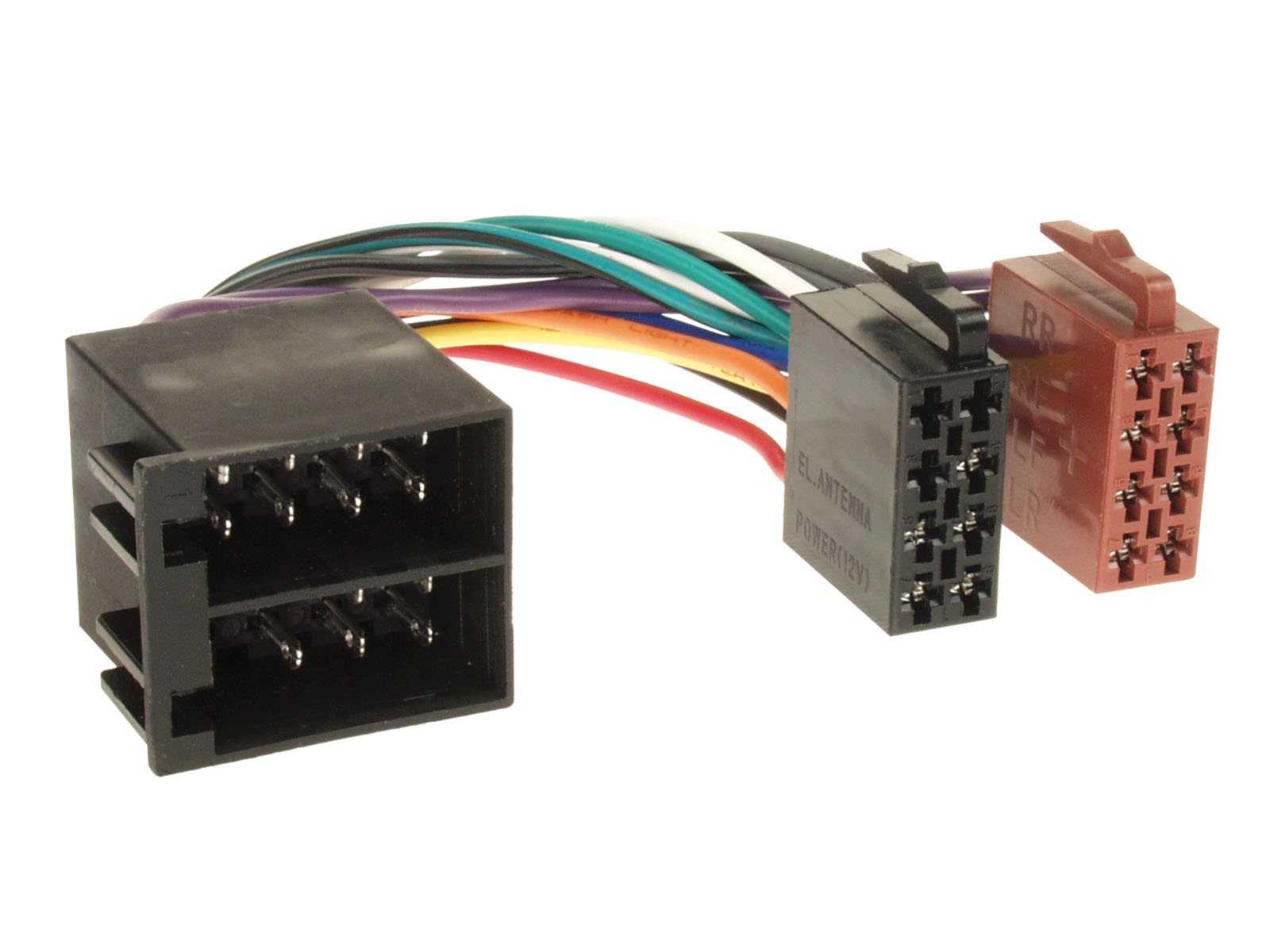

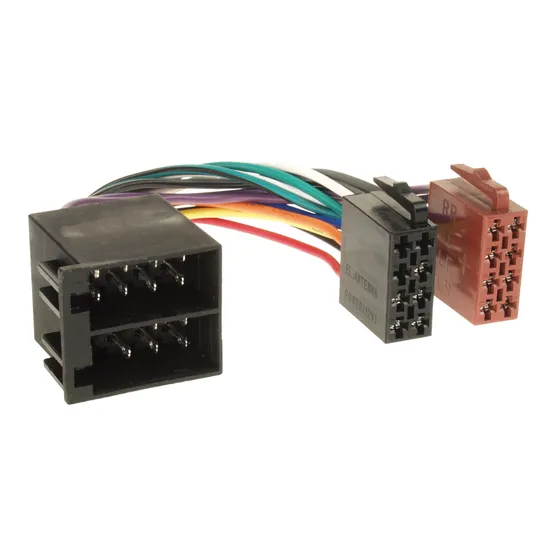

ACV ISO-ISO-liitin kääntää punaisen ja keltai

Note:

connector: Pin 7 +12V continuous current (terminal 30) / Pin 4 +12V ignition (clamp 15)

Usecase:

ISO extension for Ford / Opel / VAG vehicles with reversed +12V steady power/+12V ignition supply connection

Vehicle application:

Ford Galaxy 2000 - 2006*/**

Opel
Opel Agila (A) 2000 - 2004
Opel Astra (G) 1998 - 2005
Opel Corsa (C) 2000 - 2004
Opel Combo 2000 - 2004
Opel Meriva 2003 - 2006
Opel Omega 1999 - 2003
Opel Vectra (B/C) 1999 - 2004
Opel Vivaro (A) 2002 - 2006
Opel Zafira (A) 1999 - 2005

Seat Alhambra 2000 - 2005*/**

VW**
VW New Beetle 1997 - 2010
VW Bora 1998 - 2005
VW Caravelle 1996 - 2004
VW Caddy (9KV) 1998 - 2003
VW Golf (IV) 1997 - 2003
VW Multivan 1996 - 2004
VW Lupo (6E) 1998 - 2005
VW Passat (3B/3BG) 1998 - 2005
VW Polo (9N) 2001 - 2005
VW Sharan 2000 - 2010
VW T4 1996 - 2004

*vehicles with MMC / MFD 4:3 OEM Sat NAV
**vehicles with double connection clamp 30 (power) Pin 5 / Pin /: blue (antenna remote) disconnect
**vehicles with phantom power antennas Antenna adapter ISO(f) > DIN(m) 12V phantom power 25cm: 1500-03
