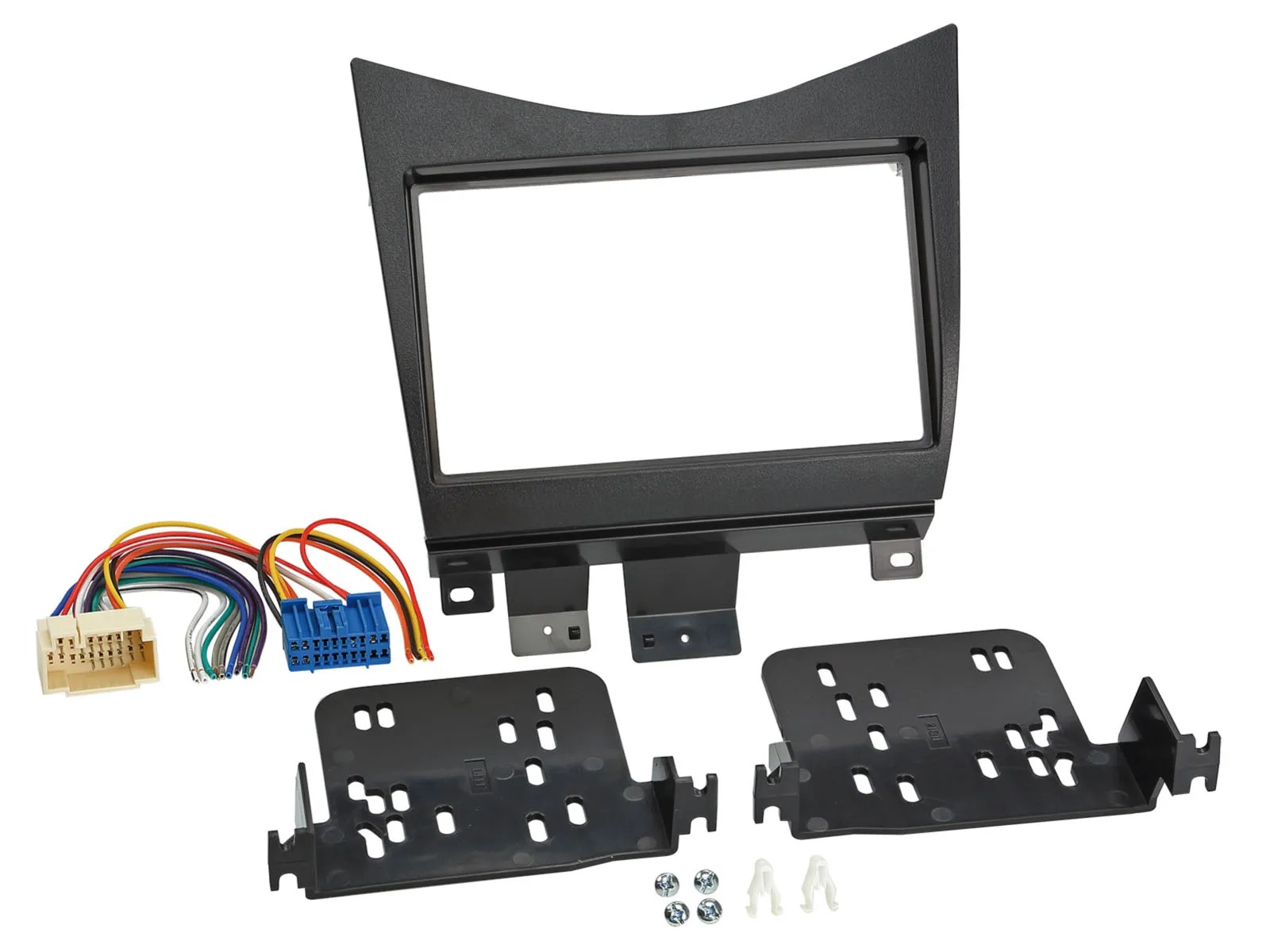

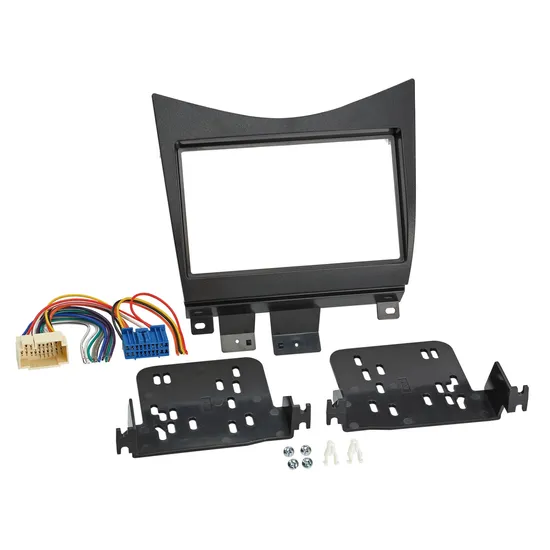

ACV 2-Din Radiosovite Honda Accord

Note:

HU assembly without sheet metal basket without HU trim frame

connector: T-Harness 20 Pin Honda > loose wires

yellow: +12V continuous current clamp 30
red: +12V ignition clamp 15
black: GND clamp 31

white: speaker left front +
white/black: speaker left  front -
grey: speaker right front +
grey/black: speaker right front -
green: speaker left rear +
green/black: speaker left rear -
purple: speaker right rear +
purple/black: speaker right rear -

Vehicle application:

Honda Accord VII (CN1/CM2) 01/2003 - 02/2006
Honda Accord VII (CM1/CM2) 02/2006  - 06/2008

Colour: black

Mounting cutout HU display: 173mm x 99,4mm
